Wire Mesh Decking for Pallet Racking: A Real 50 × 100mm Mesh Sample
By Admin · September 30, 2026 · Home › News › Wire Mesh Decking for Pallet Racking
Wire mesh decking for pallet racking is available in different mesh sizes, wire diameters, support configurations and dimensions. Choosing the right specification depends on the pallet rack design, beam span and required load.
Recently, we found a 3-rib wire mesh decking sample in our factory stock and decided to measure it myself.
This sample has a 50 × 100mm mesh opening and approximately 5.0mm wire diameter.
Instead of only showing the specifications on paper, I wanted to share the actual product measurements.

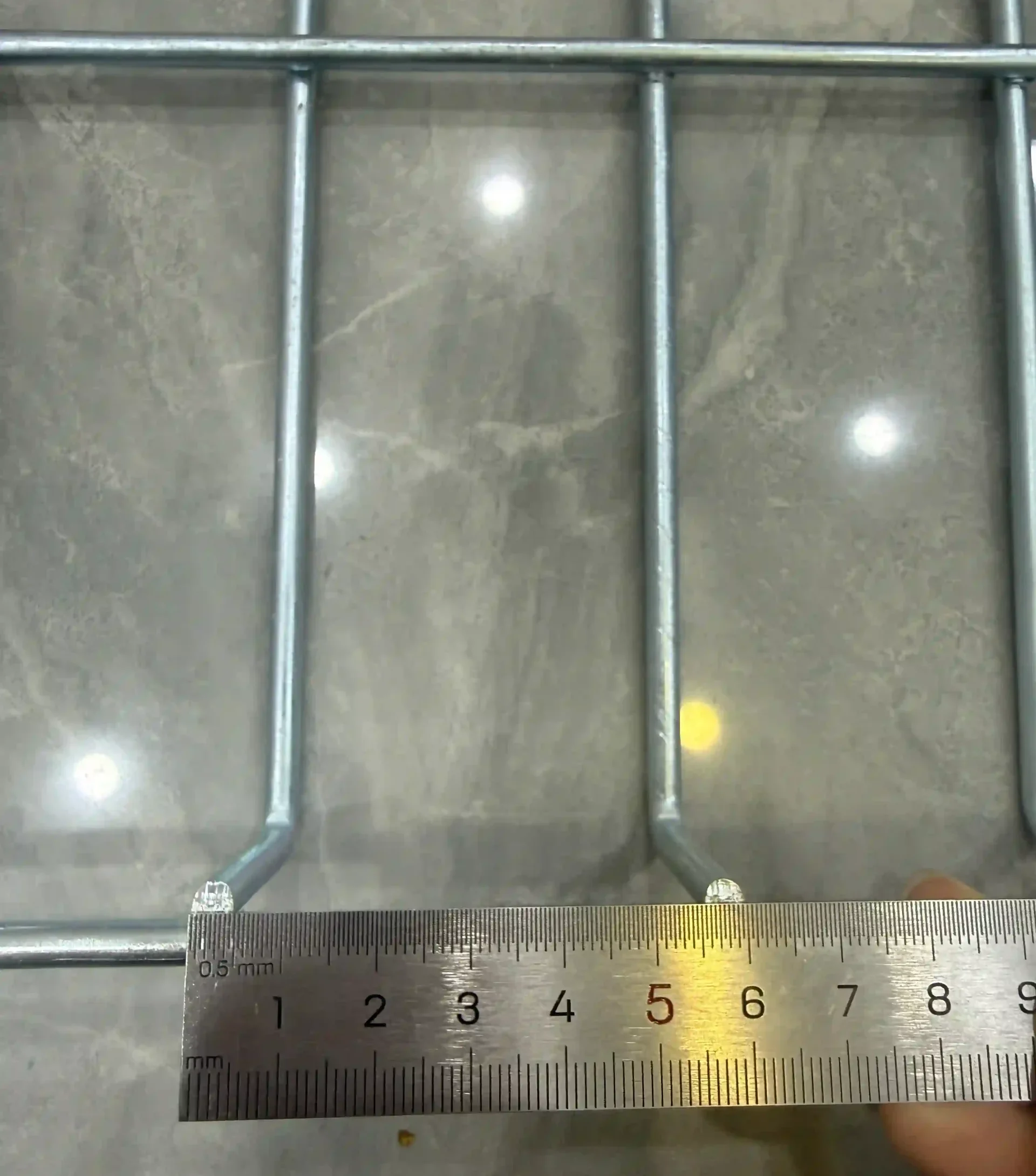

5.0mm wire diameter of wire mesh decking measured with a ruler
What Is Wire Mesh Decking?
Wire mesh decking, also called wire decking or mesh decking, is a welded steel mesh panel installed between pallet rack beams.
It creates a storage surface for pallets, cartons and other warehouse products while maintaining an open mesh structure.
The open design allows light and air to pass through the rack levels, and it can also allow sprinkler water to pass through the decking in appropriately designed storage systems. Many commercial wire decking products are designed specifically for pallet rack applications.
Different wire mesh decking designs can use different:
- Mesh openings
- Wire diameters
- Support ribs or channels
- Deck dimensions
- Edge configurations
- Surface finishes
Therefore, wire mesh decking should be selected according to the actual pallet racking system rather than by wire diameter alone.
Real Factory Sample: 50 × 100mm Wire Mesh Decking
The sample I measured in our factory uses a relatively heavy wire construction with a 50 × 100mm mesh opening.
Here are the basic specifications of this particular sample:
| Item | Measurement |
|---|---|
| Product | Wire Mesh Decking |
| Mesh Opening | 50 × 100 mm |
| Wire Diameter | Approx. 5.0 mm |
| Support Ribs | 3 ribs |
| Application | Pallet Racking |
Measuring the Mesh Opening
I used a ruler to check the actual mesh opening directly on the sample.
The measured opening is approximately 50 × 100mm.
This is an important detail when specifying wire mesh for racking, because the mesh opening and wire diameter are two separate specifications.
For example:
50 × 100mm mesh opening ≠ 5.0mm wire diameter
Both should be clearly specified when requesting a quotation or confirming production.
50mm mesh opening of wire mesh decking measured with a ruler

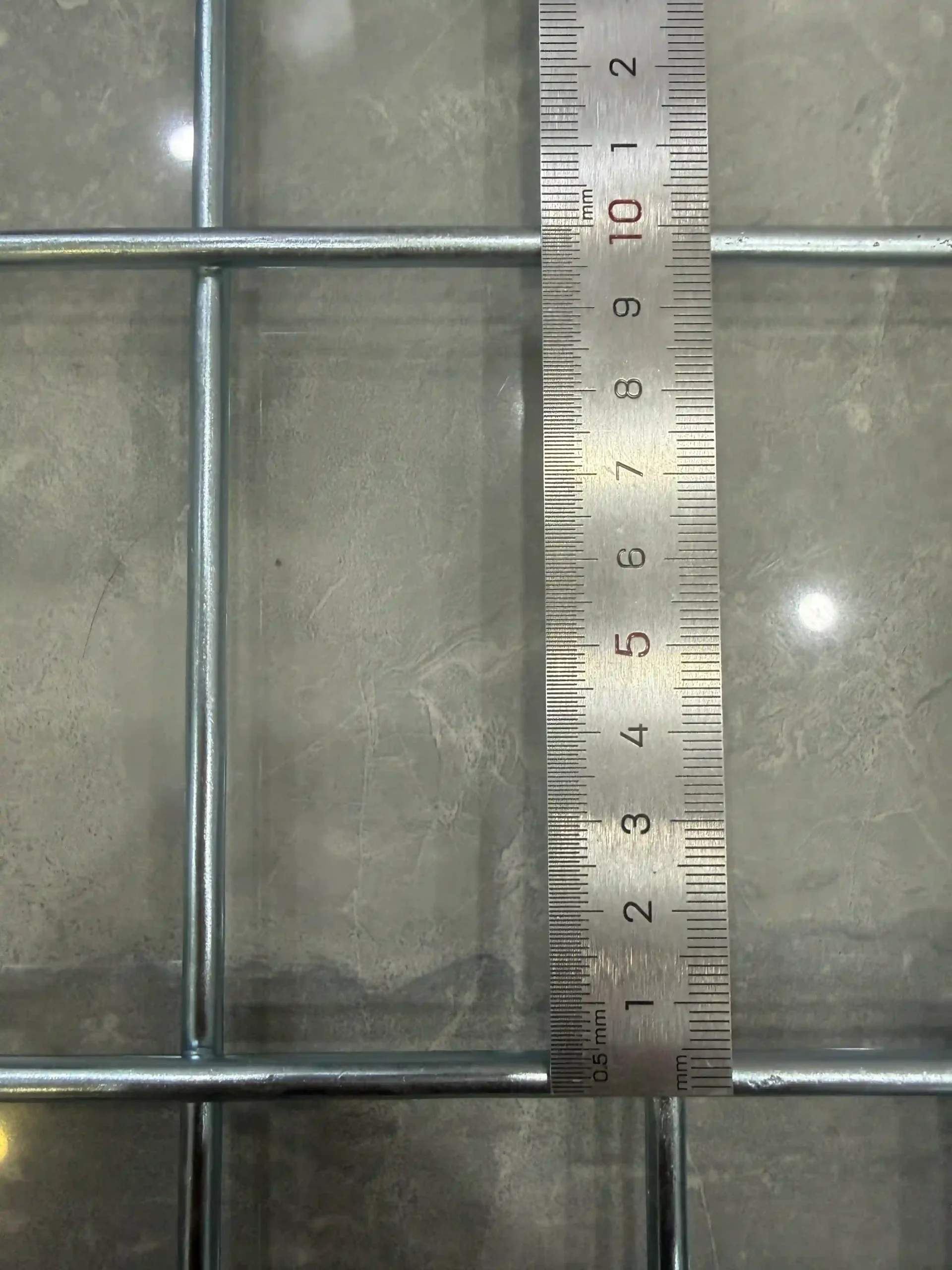

100mm mesh opening of wire mesh decking measured with a ruler
5.0mm Wire Diameter: What Does It Tell You?
The sample uses approximately 5.0mm diameter steel wire.
A larger wire diameter generally means more steel material in the welded mesh, but wire diameter alone should not be used to determine the load capacity of a mesh deck.
The actual performance of a wire mesh deck also depends on:
- Deck dimensions
- Beam span
- Support channel or rib configuration
- Wire mesh pattern
- Load distribution
- Pallet type
- Rack beam design
Commercial wire decking products are available with different wire diameters and support configurations. For example, current product specifications from manufacturers show combinations such as 4.5–5.5mm wire with 50 × 50mm or 50 × 100mm mesh openings, while other products use different wire gauges and channel designs.
So when comparing mesh decks, don’t compare only the wire diameter.
Why Do Wire Mesh Decks Have Support Ribs?
Look underneath a wire mesh decking panel and you will usually find welded support channels or ribs.
Our sample has three support ribs.
These supports are an important part of the deck structure because they help transfer the load from the mesh surface to the pallet rack beams.
The number and configuration of supports can vary according to the:
- Deck size
- Rack beam span
- Required load
- Beam profile
- Decking design
Commercial wire decking is available with different support-channel configurations, including step channels, flared channels and waterfall-style designs.
Therefore, three ribs should not be interpreted as a universal load rating. The complete decking configuration needs to be considered.
Wire Mesh Decking Specifications: What Should You Confirm?
When purchasing wire mesh decking for pallet racking, I recommend confirming at least these specifications:
1. Mesh Opening
For example:
50 × 100mm
or another required mesh pattern.
2. Wire Diameter
For example:
5.0mm
The wire diameter should be clearly stated rather than simply describing the product as “heavy duty.”
3. Deck Dimensions
The length and width/depth of the decking must match the pallet rack bay and beam arrangement.
Common North American wire decking products, for example, are available in dimensions such as 42 × 46″, 42 × 52″, 48 × 46″ and other standard configurations.
4. Support Structure
Confirm the number and type of support channels or ribs.
5. Edge Configuration
Depending on the pallet rack beam profile, different designs such as step, flared or waterfall edges may be used.
6. Required Load Capacity
Always specify whether the required capacity is based on uniformly distributed load (UDL) and confirm how the manufacturer defines the rating.
50 × 100mm Wire Mesh Decking in Real Applications
A 50 × 100mm mesh opening can be used for various pallet racking applications, depending on the overall decking design and load requirements.
Typical applications for wire mesh decking include:
- Warehouse pallet racking
- Distribution centers
- Manufacturing warehouses
- E-commerce storage
- Spare parts storage
- Industrial warehouses
- Cold storage
The final specification should be matched to the rack system and stored products.
Don't Choose Wire Mesh Decking by One Specification
When comparing different wire mesh decking suppliers, it can be tempting to ask only:
“How thick is the wire?”
But this is only one part of the specification.
For example, two wire mesh decks could both use 5.0mm wire but have different:
- Mesh openings
- Panel dimensions
- Support ribs
- Beam compatibility
- Edge designs
- Load ratings
These differences can affect the final application.
That’s why we prefer to look at the complete decking specification when discussing a pallet racking project.
A Simple Factory Measurement
This sample was already in our factory stock, so I simply took a ruler and checked the actual mesh.
50 × 100mm mesh opening.
Approximately 5.0mm wire diameter.
3 support ribs.
Nothing complicated—just a real product measurement.
For us, these small details are useful when discussing wire mesh decking with customers because the actual product can sometimes communicate more than a specification sheet.
wire mesh decking Installed on pallet rack
Need Wire Mesh Decking for Your Pallet Rack?
If you are sourcing wire mesh decking for pallet racking, we can discuss the required:
- Mesh opening
- Wire diameter
- Deck dimensions
- Support ribs
- Beam profile
- Load requirement
- Surface finish
You can send us your rack beam dimensions, pallet size or existing decking drawing, and we can check the suitable configuration with our production team.
Looking for wire mesh decking? Send us your rack dimensions and requirements, and we’ll check the details with you.
